Product Details :

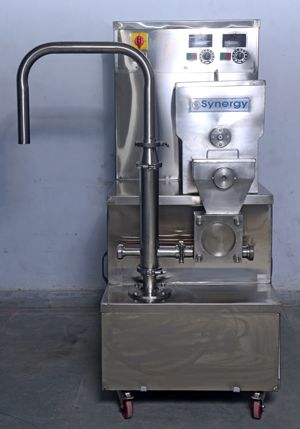

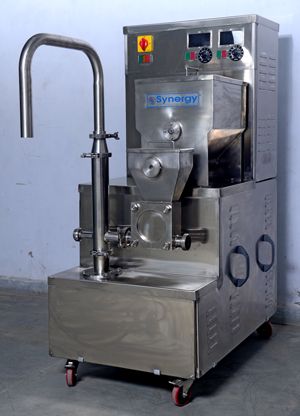

- Frame and covering panel made from S. S. 304 quality
- Rotary valve with three blades
- Blades made from special nickel alloy
- All contact pats of S. S. 304 and food grade plastic
- Separate drive for rotor and ingredient feeder
- Variable speed AC frequency drive for Lifter, Mixer & Augur
- S. S. hopper with mixer for storage of ingredient
Specifications
| Model | FF – 200 | FF – 600 | FF – 1200 |
| Ice cream flow rate l/hr. | 100 – 200 | 300 – 600 | 800 – 1200 |
| Augur motor, kW | 0.37 | 0.37 | 0.37 |
| Rotor motor, kW | 0.75 (R+M) | 1.12 (R+M) | 1.12 (R+M) |
| Mixer motor, kW | – | – | 0.75 (M) |
| Hopper capacity, liter | 10 | 25 | 35 |
| Ingredient feeder rate, kg/hr. | 05 – 30 | 20 – 80 | 40 – 160 |
| Length, mm | 680 | 900 | 950 |
| Width, mm | 500 | 630 | 700 |
| Height, mm | 960 | 1340 | 14400 |
